How Domain Ontologies Work

Domain ontologies are the central design concept in create-context-graph. A single YAML file defines everything about a domain -- its entities, relationships, agent behavior, and visualization -- and the tool uses that definition to generate an entire application. This page explains how that mechanism works and why it was designed this way.

What Is a Domain Ontology?

In this project, a domain ontology is a structured YAML file that describes:

• What exists in a domain (entity types and their properties)
• How things relate (relationship types between entities)
• What the agent can do (tools with Cypher queries)
• How the agent behaves (system prompt, demo scenarios)
• What data looks like (document templates, decision traces)
• How it is visualized (node colors, sizes, default queries)

The ontology is not code. It is a declarative specification that gets fed into Jinja2 templates at generation time. The templates read the ontology and produce working Python, TypeScript, Cypher, and configuration files.

Two-Layer Inheritance

Every domain ontology is built on top of a shared base. The base ontology (_base.yaml) defines the POLE+O entity types that are common across all domains:

Base Entity	POLE+O Type	Description
Person	PERSON	Individuals -- customers, employees, patients, suspects
Organization	ORGANIZATION	Companies, agencies, teams, departments
Location	LOCATION	Physical places with optional coordinates
Event	EVENT	Time-bound occurrences
Object	OBJECT	Catch-all for domain-specific things

The base also defines common relationships: WORKS_FOR (Person to Organization), LOCATED_AT (Organization to Location), and PARTICIPATED_IN (Person to Event).

When a domain YAML declares inherits: _base, the loader performs a merge:

1. Base entity types are prepended to the domain's entity list.
2. Base relationships are prepended to the domain's relationship list.
3. If the domain defines an entity with the same label as a base entity (e.g., its own Person with extra properties), the domain version takes precedence and the base version is skipped.

This means every domain automatically gets Person, Organization, Location, and Event nodes without redeclaring them, while retaining the freedom to override any base type with a domain-specific version.

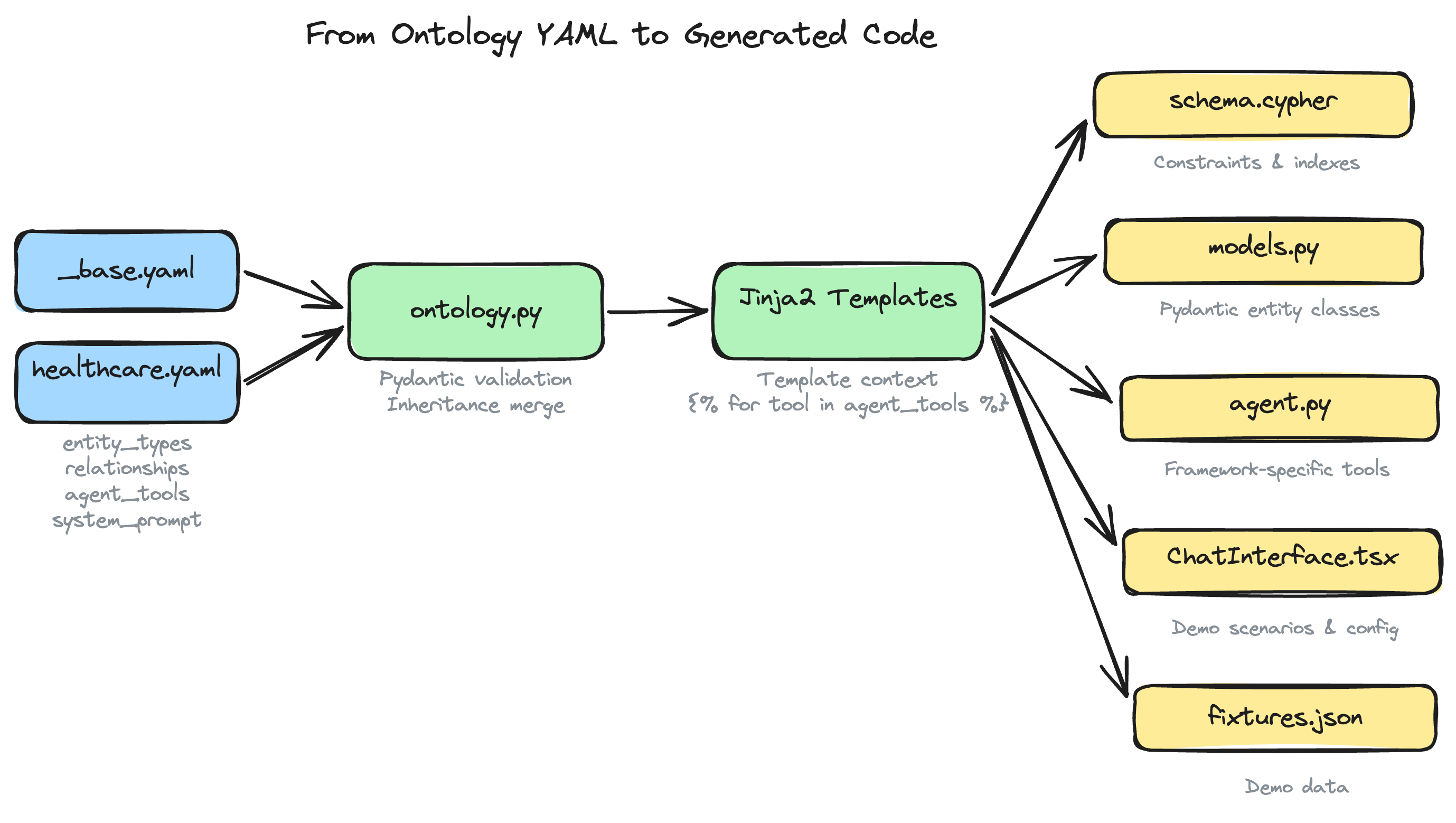

How the Ontology Drives Code Generation

The ontology YAML is loaded into a DomainOntology Pydantic model, which is then passed as context to every Jinja2 template. Here is how each section of the ontology influences the generated output:

Entity Types to Neo4j Schema

Each entity_types entry with unique: true properties generates a Cypher uniqueness constraint. Every entity type also gets a name index for fast lookups. The result is written to cypher/schema.cypher.

Entity Types to Pydantic Models

Each entity label becomes a Python class in backend/app/models.py. Properties map to typed fields. Enum properties generate Python Enum classes. Required properties become mandatory fields; optional ones default to None.

Agent Tools to Framework-Specific Code

The agent_tools list is iterated in the agent template (agent.py.j2) to produce tool definitions in the chosen framework's idiom. For PydanticAI, each tool becomes an @agent.tool decorated function. For LangGraph, each becomes a @tool function. The Cypher query and parameter definitions come directly from the YAML.

System Prompt

The system_prompt string is injected verbatim into the agent configuration. It tells the LLM what domain it operates in, what tools are available, and how to behave.

Visualization Config

The visualization section (plus the color field on each entity type) populates the NVL component's configuration in the frontend. Node colors, sizes, and the initial Cypher query for the graph view all come from the ontology.

Document Templates and Decision Traces

These sections drive the data generation pipeline. When --demo-data is used, the generator reads document_templates to know what kinds of documents to produce and decision_traces to know what reasoning scenarios to simulate.

Demo Scenarios

The demo_scenarios list becomes clickable preset prompts in the chat interface, giving users a guided tour of the agent's capabilities without having to think of questions.

Domain-Agnostic Templates, Data-Driven Output

A key design decision: there are no per-domain template directories. The same set of Jinja2 templates produces a healthcare app, a financial services app, a wildlife conservation app, or any of the other 22 built-in domains. The templates are parameterized entirely by the ontology context.

This means:

• Adding a new domain requires only a YAML file, not new templates.
• Improvements to templates (better UI, new features, bug fixes) benefit all domains simultaneously.
• The template surface area stays small and maintainable regardless of how many domains exist.

The only template that varies by a non-ontology dimension is agent.py.j2, which has one version per supported agent framework (PydanticAI, Claude Agent SDK, LangGraph, etc.). But even those framework-specific templates read the same ontology context -- they just express tool definitions and agent setup in different framework idioms.

How 22 Domains Produce 22 Unique Applications

Consider two domains: healthcare and financial-services. Both inherit from _base, so both get Person, Organization, Location, and Event. But:

• Healthcare adds Patient (a specialized Person), Diagnosis, Treatment, Medication, and Appointment entity types with medical properties.
• Financial Services adds Account, Transaction, Portfolio, and Decision entity types with financial properties.

The same routes.py template generates API endpoints for both. The same ChatInterface.tsx template generates the chat UI for both. But the models, schema, tools, system prompt, visualization, and demo scenarios are completely different because they come from different ontology YAML files.

The result: one codebase for the generator, 22 distinct applications out the other end.

Extending with Custom Domains

Beyond the 22 built-in domains, users can create custom ontologies in two ways:

1. Write a YAML file manually. Follow the schema, place it in the domains/ directory (or ~/.create-context-graph/custom-domains/), and it becomes available as a --domain option.

2. Use --custom-domain with a natural language description. The CLI sends the description to an LLM, which generates a complete ontology YAML. This YAML goes through the same validation and template rendering pipeline as any built-in domain.

Both paths produce the same output: a DomainOntology object that drives the templates.
